Overview:

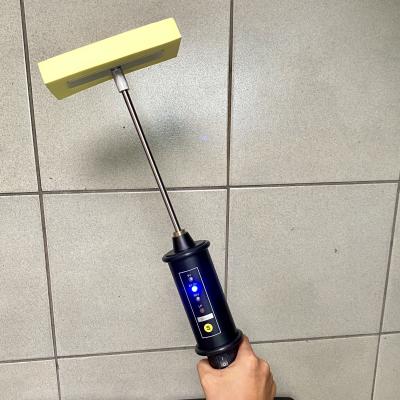

The HD104 Wet Sponge Pinhole Leak Detector is a high-quality, low-voltage testing instrument designed to detect pinholes, gaps, damage, and other defects in insulating coatings on conductive substrates up to 500 microns thick. Utilizing advanced wet sponge testing technology, it complies with multiple international standards, ensuring reliable and accurate performance for various inspection needs.
Complies With Standards:
- ASTM 3894.2, ASTM D-5162 A, ASTM G6, ASTM G62-A
- BS 7793-2, ISO 8289, ISO 8289 A, ISO 14654
- NACE RP 0188
Key Features:
-
Multi-Voltage Options: Operates at 9V, 67.5V, and 90V for versatile testing applications.
-
Defect Detection: Accurately measures pinholes and defects in coatings on conductive substrates.
-
User Alerts: Features visible LED signals and audio alarms for clear detection feedback.
-
Battery Performance: Equipped with a high-capacity 11.1V lithium polymer battery for long-lasting operation.
-
Compact Design: Lightweight (500g) and portable, with a durable carrying case for easy transport.
-
Ease of Use:
- Quick-loading signal line.
- Large standard sponge (170x70x30 mm) for efficient coverage.
- 4-meter ground wire for extended reach.
Technical Specifications:
-
Applicable Test Thickness:
- 9V: up to 300 microns
- 67.5V & 90V: up to 500 microns
-
Sensitivity:
- 9V: 90 kΩ ± 5%
- 67.5V: 125 kΩ ± 5%
- 90V: 400 kΩ ± 5%
-
Voltage Accuracy: ±5%
-
Power Consumption: ≤0.5W
-
Dimensions: 290 × 53 × 53 mm
-
Probe Rod Length: 195 mm
-
Battery Charging: 12VDC constant voltage lithium battery charger included.

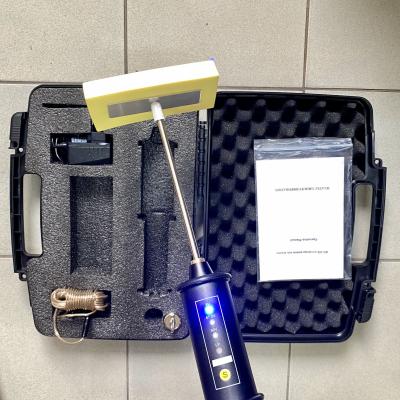

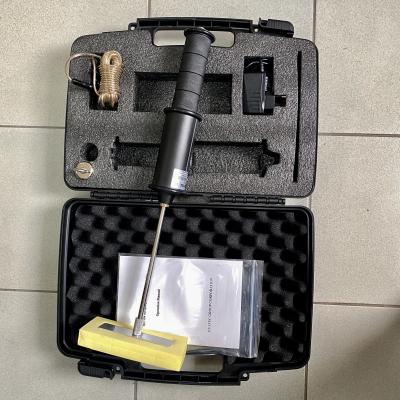

Standard Accessories:
- HD104 main unit
- Standard wand with flat sponge
- Earth wire
- Charger
- Carrying case
- Manual and warranty card
Applications:
The HD104 is ideal for detecting defects in coatings for industries such as automotive, aerospace, and manufacturing. It provides accurate, efficient, and reliable testing for coatings up to 500 microns, ensuring optimal substrate protection.
Why Choose the HD104?
With its compliance to international standards, versatile voltage options, and durable yet lightweight design, the HD104 offers professional-grade performance for pinhole and defect detection. Its intuitive operation, visible and audio alerts, and portability make it a preferred choice for inspectors and technicians.
Order the HD104 Today!
Ensure the integrity of your insulating coatings with the trusted performance of the HD104 Wet Sponge Pinhole Leak Detect
